- Place of Origin: Quanzhou
- Brand Name: hengxing
- Model Number: YHZS50

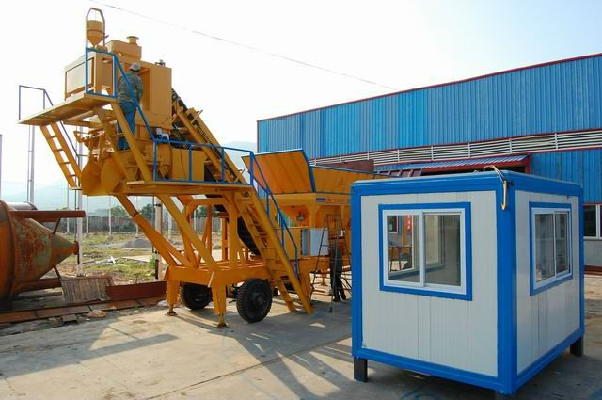

YHZS50 mobile concrete mixing plant equipments as follow
1. Aggregate batcher
2. Measured belt conveyor
3. Mobile frame
4. Grooved belt conveyor
5. Host mixing machine
6. Weighting system
7. Screw conveyor
8. Cement silo
Main mobile concrete batching plant's technical parameter
YHZS series mobile concrete mixing plant -Main technical parameters | |||||||||
Model | productivity | Host mixer | Weighing pricision | Total power (kw) | Total weight (kg) | Speed (km/h) | Tread diameter(mm) | Turning radius (m) | |
m³/h | Aggregate | others | |||||||
YHZS25 | 25 | JS500 | ≤2% | ≤1% | 45 | 20000 | 15 | 3200 | 9 |
YHZS35 | 35 | JS750 | ≤2% | ≤1% | 60 | 22000 | 15 | 3200 | 9 |
YHZS50 | 50 | JS1000 | ≤2% | ≤1% | 70 | 25000 | 15 | 3400 | 10 |
YHZS75 | 75 | JS1500 | ≤2% | ≤1% | 100 | 32000 | 15 | 3400 | 12 |
- Place of Origin: Quanzhou
- Brand Name: hengxing
- Model Number: YHZS50
YHZS50 mobile concrete mixing plant specification
| Model | YHZS50 | |
| Productivity | 35(m3/h) | |
| Host mixer | JS750 | |
| Weighing system | Aggregate | ≤2% |
| Other | ≤1% | |
| Total power | 60kw | |
| Total weight | 22t | |
| Speed | 15km/h | |
| Tread diameter | 3200mm | |
| Turning radius | 9m |
