- Place of Origin: Quanzhou
- Brand Name: hengxing
- Model Number: HZS60

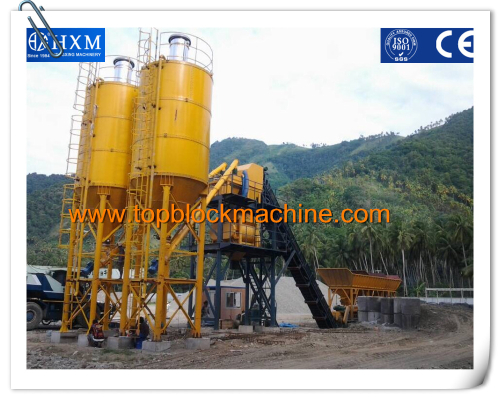

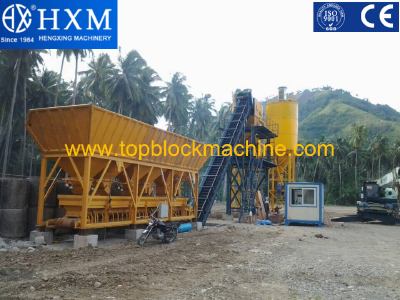

HZS series ready mixing concrete batching plant mixing plant small concrete batching plant for road construction
Product Description
Technical Parameters:
Model | HZS50 | |
Productivity(m3/h) | 50 | |
Host machine of mixer | Model | JS1000 |
Mixer power(kw) | 2*22kw | |
Output capacity(m3) | 1 | |
Aggregate Size (mm) | ≤60 | |
Batching bunker | Hoppers capacity (m3) | 3×5 |
Hoppers NO. | 3 | |
Capacity of Belt conveyor(t/h) | 200 | |
Weighting scope and precision | Aggregate(kg) | 2500 ±2% |
Cement(kg) | 600±1% | |
Coal ash(kg) | - | |
Water(kg) | 200±1% | |
Additives(kg) | 10±1% | |
Total power (kw) | 80 | |
Unloading Height(m) | 3.8 | |
Remarks:
1. The total power do not include the power conveyor.
2. The hopper and the capacity can be designed as customer’s requirement.
3. The parameters may have changed, please subject to the products.
Product Description:
1. Simple structure, large maintaining space, maintenance is convenient.
2. The promotion system multiple protection is stable reliable with high efficiency.
3. Space occupied is small. Installation and relocation are easy.
4. Using automatic industrial control system. The management function is powerful and reliable.
5. Major electrical components are used internationally well known brands.
6. Particular suitable for small and middle sized of concrete construction needs.
Equipment included:
1. Batcher(3 bins)
2. Protective Fencing
3. Hopper Hoist System
4. Main building and Guidance
5. Mixer
6. Weighing System
7. Screw Conveyor
8. Silo
- Place of Origin: Quanzhou
- Brand Name: hengxing
- Model Number: HZS60
Technical Parameters:
Model | HZS50 | |
Productivity(m3/h) | 50 | |
Host machine of mixer | Model | JS1000 |
Mixer power(kw) | 2*22kw | |
Output capacity(m3) | 1 | |
Aggregate Size (mm) | ≤60 | |
Batching bunker | Hoppers capacity (m3) | 3×5 |
Hoppers NO. | 3 | |
Capacity of Belt conveyor(t/h) | 200 | |
Weighting scope and precision | Aggregate(kg) | 2500 ±2% |
Cement(kg) | 600±1% | |
Coal ash(kg) | - | |
Water(kg) | 200±1% | |
Additives(kg) | 10±1% | |
Total power (kw) | 80 | |
Unloading Height(m) | 3.8 | |
Others Model Technical Parameter
Model | HZS50 | HZS75 | HZS100 | HZS150 | HZS200 | ||||||||
Productivity(m3/h) | 50 | 75 | 100 | 150 | 200 | ||||||||
Host machine of mixer |
Model | JS100/ MSO1500 | JS1500/ MSO2250 | JS2000/ MAO3000 | JS3000/ MAO4500 | JS4000/ MAO6000 | |||||||
Mixer power(kw) | 2×22 | 2×30 | 2×37 | 2×55 | 2×75 | ||||||||
Output capacity(m3) | 1 | 1.5 | 2 | 3 | 4 | ||||||||
Aggregate Size (mm) | ≤60 | ≤80 | ≤120 | ≤150 | ≤150 | ||||||||
Batchingbunker | Hoppers capacity (m3) | 13 | 15 | 20 | 30 | 30 | |||||||
Hoppers NO. | 4 | 4 | 4 | 4 | 4 | ||||||||
Capacity of Belt conveyor(t/h) | 200 | 300 | 400 | 600 | 800 | ||||||||
Weighting scope and precision | Aggregate(kg) | 4×1500 ±2% | 4×2500±2% | 4×3000±2% | 4×3600±2% | 4×4800±2% | |||||||
(kg) Cement | 600±1% | 900±1% | 1200±1% | 1800±1% | 2400±1% | ||||||||
Coal ash(kg) | 200±1% | 300±1% | 400±1% | 600±1% | 800±1% | ||||||||
Water(kg) | 300±1% | 500±1% | 600±1% | 800±1% | 1000±1% | ||||||||
Additives(kg)
| 30±1% | 30±1% | 50±1% | 50±1% | 100±1% | ||||||||
Total power (kw) | 96 | 120 | 140 | 190 | 230 | ||||||||
