- Place of Origin: Fujian, China (Mainland)
- Brand Name: hengxing
- Model Number: HQTY8-15
Suitable for medium investment.
The frequency conversion control system is adopted in the vibration system, and the speed of the motor is controlled by the low speed cruising technology, improve molding speed and product density.
Having passed ISO9001.
Just change the mould can produce blocks which you want
Advantages
1.This product have the characteristic of superior quality and low cost. The appearance of products is clearwith distinct edges and corners, High strength in products, and it is more beautiful than clay brick. |
2.Products diversification. Our machine can produce Standard Brick,Porous Brick, hollow block and colors paver brick according to the requirement of the project. Its strength grade is from MU1.5 to MU30.The products can fully meet any requirement of the project. |
3It can reduce the cost of construction project, its significant economic advantage. It is saving of labor, time, concrete, energy by used the concrete hollow to built the house. |
Main Characteristics
| 1. | Made in china |
| 2. | Easy to operate |
| 3. | FULL automatic Block Machine |
| 4. | Low maintenance, One year warranty |
| 5. | Use table vibration and mould vibration |
| 6. | Favorable price and high quality to meet your budget |
FAQ
1. Is this Hengxing brick making machine suitable for us?
We can recommed the best suitable model for you , please inform us the brick size, material and the production capacity you need.
2. How to install Hengxing brick making machine?
Buyers are responsible for installation cost, including round trip flight tickets, accommodation and daily salaries for our engineer.
3. How to use Hengxing brick making machine?
We will train your workers.
4. What is the automatic level?
Full automatic semi-automatic basic automatic or design for clients' requirements.
- Place of Origin: Fujian, China (Mainland)
- Brand Name: hengxing
- Model Number: HQTY8-15
Technical Paramerters

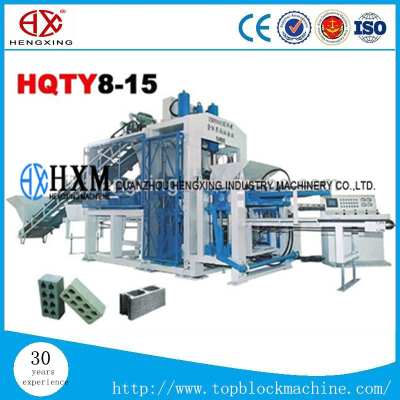

HQTY8-15 Fully Automatic Block Machine Production Line | |
Host Machine Size | 3590*2200*2950 |
Moulding Area | 850*820 |
Moulding Cycle | 15-20s |
Pallet Size | 860*940*20/25mm |
Host Machine Weight | 12.5t |
Total Power | 33.9kw |
Vibration Force | 55-60kn |
Factory Area | 600square meters |
Install Capacoty | 50kw |
Mixer Model | JS500 |
Production Parameters
Item
| Specification(mm) (L*W*H) | Quantity per hour |
Concrete block | 390*190*190 | 1280-1440 |
Solid block | 240*115*53 | 6283-7020 |
Porous block | 240*115*90 | 2880-3240 |
Paving brick | 250*250*60 | 1300-1450 |
Holand brick | 200*100*60 | 3200-3300 |
Specifications
| 1. | Hydraulic system |
| 2. | Mitsubishi PLC, Touch screen controller |
| 3. | Vibration of woking beach |
| 4. | Twin shaft compulsory mixer |
