- Place of Origin: QUANZHOU, CHINA
- Brand Name: hengxing
- Model Number: HQTY8-15
- :
- :

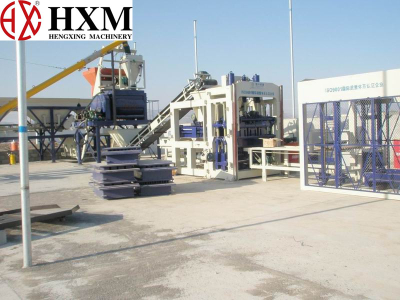

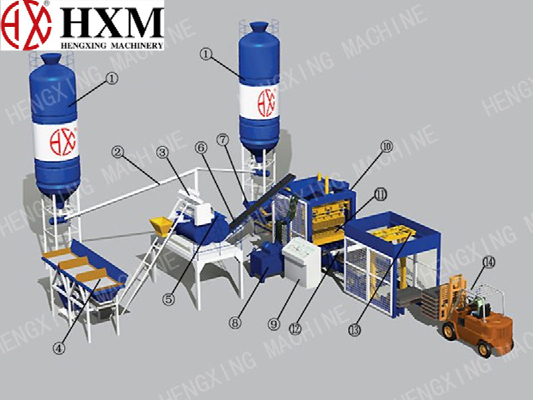

Concrete Block Making MachineHQTY8-15
The feature of technology:
1, Table vibration system plus head press vibration system:
A: table vibration plus head press vibration
B: working stable and safely
C: head press has three oil cylinders
D: improve the block of density and intensity
2, Control system:
A: Mitsubishi PLC,self diagnosed for trouble shooting
B: touch screen controller (Eview,Shenzhen), easy operation
C: International electrical components: Omron, Schneider
3, Proportional electro-hydraulic relief valves (Taiwan, Calyca)
A: Its working steady with low noise
B: Hi-precision
C: Easy micro-Adjusting
4, 360degrees of seconds’ pendulum feeding system
A: feeding motor is working with two or four transmission shafts
B: it can feed various materials to the various moulds.
C: improve the block of density and intensity
D: improve the feeding speed within 2 seconds
E: it is very easy to clean the feeder.
5, American and British combination of sealing system
A: it is connected 100 percent closely, no leaking at all.
B: to make sure the hydraulic system working stable and smooth.
6, heat treatment and wire cutting for the mould
A: Use the 16 manganese steel
B: heat treatment can reach HRC 61.
C: Working 150,000 times.
7, Pallets feeder of pusher brake system
A: big size pusher brake for the different type of pallets.
B: feeding the pallets smooth, no stop.
8, water cooling system
A: keep the hydraulic oil of working temperature.
B: protect the hydraulic system and mechanical system.
HQTY8-15Fully-automatic block machine | |
Host machine dimension | 3000x2200x2950mm |
Moulding area | 800x820mm |
Moulding period | 15-20s |
Pallet size | 860x940x20/25mm |
Host machine weight | 12.5t |
Host machine power | 33.9kw |
Vibration force | 60kn |
Mixer Model | 600 square meters |
Capacity | 50kw |
Mixer Model | JS500 |
HQTY8-15 Production Parameters | ||
Item | Specification(LxWxH) | Quantity per hour(PCS) |
Hollow block | 390x190x190 | 1280-1440 |
Solid block | 240x115x53 | 6283-7020 |
Porous block | 240x115x90 | 2880-3240 |
Paving brick | 250x250x60 | 950-1080 |
Holand brick | 200x100x60 | 3800-3960 |
