- Place of Origin: Quanzhou
- Brand Name: hengxing
- Model Number: HZS90/100/120/150/180

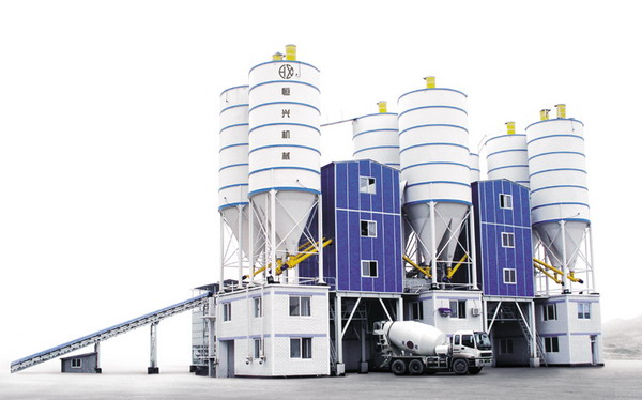

Concrete batching plant concrete mixing plant adopt various configurations:
1.Main structure :(Single,double) station ,(Single,double) building,vessel ,half- high tower type.
2. Main mixer:(new type) double-screw mixer,double -axle mixer.
A.Horizontal twin shaft mixer or Planetary mixer
B.Italian SICOMA MIXER or JS MIXER made by HXM Company
C.Germany BHS, TEKA of mixer etc.
3. Control system:(new type) double machine synchronous contronl type,classic control type
A.Mitsubishi PLC, self diagnosed for trouble shooting
B. Industry computer plus printer, daily report, monthly report, yearly report, monthly report, yearly report
C. International electrical components: Omron, Schneider
D. Monitor system
4.Aggregate conveye:(horizontal ,shape ,grooved shape ) belt to load material ,load material by skiphoist
5.Batching system
A. according to customer’s site, it has Under- ground batcher (concrete structure), on the ground batcher (steel structure)
B, it has Accumulative weighing system and individual weighing system
6.Clean system:Bag type ,vibration type ,pulse type cleaner.
7. Air system :Main component adopt famous brand product .
8. Powder conveye:Screw conveye ,air conveye .wind groove conveye Material weighting ;single weighting,cumulative weighting .
9. Belt system
A, trough belt conveyor for the limited land
B, long belt conveyor for the bigger land
- Place of Origin: Quanzhou
- Brand Name: hengxing
- Model Number: HZS90/100/120/150/180

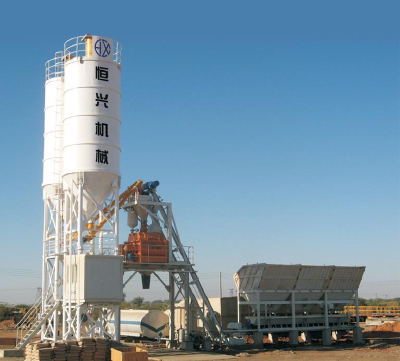

Concrete mixing plant mixing machine ready mixing plant
Technical Parameter
Model | HZS50 | HZS75 | HZS100 | HZS150 | HZS200 | ||||||||
Productivity(m3/h) | 50 | 75 | 100 | 150 | 200 | ||||||||
Host machine of mixer |
Model | JS100/ MSO1500 | JS1500/ MSO2250 | JS2000/ MAO3000 | JS3000/ MAO4500 | JS4000/ MAO6000 | |||||||
Mixer power(kw) | 2×22 | 2×30 | 2×37 | 2×55 | 2×75 | ||||||||
Output capacity(m3) | 1 | 1.5 | 2 | 3 | 4 | ||||||||
Aggregate Size (mm) | ≤60 | ≤80 | ≤120 | ≤150 | ≤150 | ||||||||
Batchingbunker | Hoppers capacity (m3) | 13 | 15 | 20 | 30 | 30 | |||||||
Hoppers NO. | 4 | 4 | 4 | 4 | 4 | ||||||||
Capacity of Belt conveyor(t/h) | 200 | 300 | 400 | 600 | 800 | ||||||||
Weighting scope and precision | Aggregate(kg) | 4×1500 ±2% | 4×2500±2% | 4×3000±2% | 4×3600±2% | 4×4800±2% | |||||||
(kg) Cement | 600±1% | 900±1% | 1200±1% | 1800±1% | 2400±1% | ||||||||
Coal ash(kg) | 200±1% | 300±1% | 400±1% | 600±1% | 800±1% | ||||||||
Water(kg) | 300±1% | 500±1% | 600±1% | 800±1% | 1000±1% | ||||||||
Additives(kg)
| 30±1% | 30±1% | 50±1% | 50±1% | 100±1% | ||||||||
Total power (kw) | 96 | 120 | 140 | 190 | 230 | ||||||||
