- Size: 17843x11430x13000(mm)
- Place of Origin: Quanzhou, Fujian, China(Mainland)
- Brand Name: hengxing
- Model Number: HZS50
- Weight: 1800.000 kg
- :
- :
- :
- :

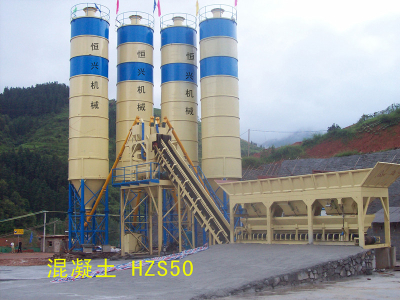

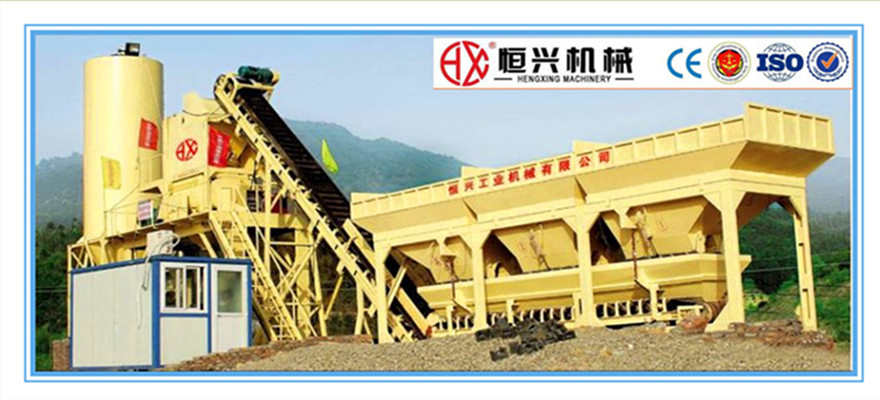

HZS50 Concrete Mixing Plant Concrete Batching Plant Small Concrete Mixing Machine
Our HZS50 type concrete mixing station is compact structure, flexible arrangement, low investment, the dismantle and transportation also convenient, highly favored users.
According to user needs to implement a variety of combination way and the way of feeding, HZS50 type concrete batching plant is small and medium-sized construction, highway bridge construction, concrete product factory's ideal equipment.
Our Service
1. Effective communication:
Any inquiry will be fast replied. Accurately convey customer’s information. Help customer to control the goods quality.
2. In-time and reliable after sale service:
We have been keeping a very good cooperation relationship with factories. We can help customer to change the broken spare parts or send engineer to the local in-timely with low cost.
3.1 year warranty. Engineer comes to the local for installation for free in the first month and free spare parts changing. If it is above 1 year, need customer charge the air tickets, visa and living expenses for the engineers to install in the local.
Company Information
Quanzhou Hengxing Industrial Machinery Co., Ltd was established in 1984, which is the professional road building machinery and construction machinery enterprise with perfect incorporation of development, production, sales and service. Hengxing is locked in Dongmen Industry Area, Fengzhou, Quanzhou City.
- Size: 17843x11430x13000(mm)
- Place of Origin: Quanzhou, Fujian, China(Mainland)
- Brand Name: hengxing
- Model Number: HZS50
- Weight: 1800.000 kg
- :
- :
- :
- :
Model | HZS50 | HZS75 | HZS100 | |
Productivity (m3/h) | 50 | 75 | 100 | |
Mixer | Model | JS1000/ MSO1500 | JS1500 MSO2250 | JS2000 MAO3000 |
Mixer power(kw) | 2×22 | 2×30 | 2×37 | |
Output capacity(m3) | 1 | 1.5 | 2 | |
Aggregate Size (mm) | ≤60 | ≤80 | ≤120 | |
Aggregate Bin | Hoppers capacity (m3) | 3*9 | 3*13 | 3*13 |
Hoppers NO. | 3 | 3 | 3 | |
Capacity of Belt conveyor(t/h) | 200 | 200 | 300 | |
Weighting scope and precision | Aggregate(kg) | 2500±2% | 3500±2% | 4500±2% |
Cement(kg) | 600±1% | 900±1% | 1200±1% | |
Coal ash(kg) | 200±1% | 300±1% | 400±1% | |
Water(kg) | 300±1% | 400±1% | 600±1% | |
Additives(kg) | 10±1% | 30±1% | 30±1% | |
Total power (kw) | 80 | 108 | 126 | |
Discharge height | 3.8 | 3.8 | 3.8 | |
