- Place of Origin: quanzhou
- Brand Name: hengxing
- Model Number: HZY8500

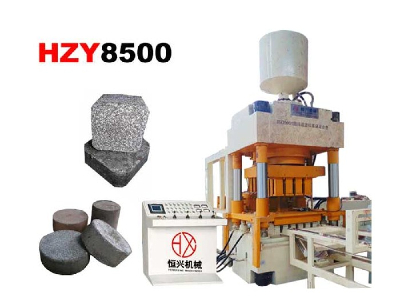

HZY8500 hydraulic pressure slag block making machine description:
HZY8500 hydraulic brick machine equipment is given priority to hydraulic pressure, its electric control system adopts PLC programmable procedure, integrates machine、 electricity、 gas and liquid, by pushing board, feeding material, crush molding. The hydraulic extrusion products process, molding fast, power saving, products structure highly strength, no pollution, lower noise, energy saving function etc. Equipped with a man-machine interface system, the automatic fault diagnosis, remote monitoring, automatically monitoring of production operating procedures.
- Place of Origin: quanzhou
- Brand Name: hengxing
- Model Number: HZY8500
HZY-8500 Slag brick making machine technical parameters | |
Maximum pressure | 5000kn |
Maximum demoulding press | 950kn |
Rated pressure | 25Mpa |
Total power | 40Kw |
Molding cycle | 20-28s |
Max height of feeding material | 200mm |
Steel pallet size | 940mm x 860mm x 12mm |
Host machine dimension | 3350mm x 1800mm x 3650mm |
Host machine weight | 17t |
Block capacity of HZY-8500 hydraulic pressure machine |
160mm x 90mm x 100mm=32pcs/mould=4800pcs/h |
200mm x 100mm x 50mm=18pcs/mould=2750pcs/h |
240mm x 53mm x 115mm=27pcs/mould=4050pcs/h |
