- Place of Origin: quanzhou
- Brand Name: hengxing
- Model Number: HZY8500

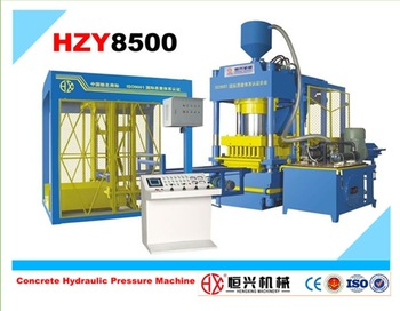

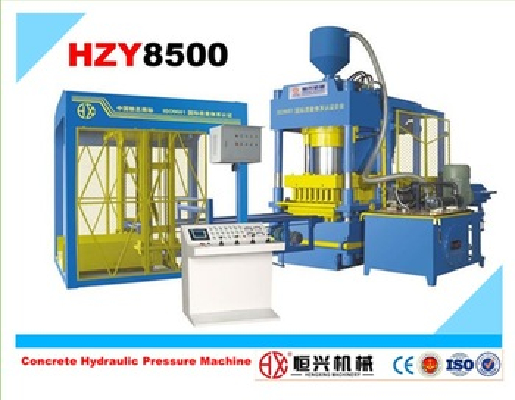

HZY8500 hydraulic pressure slag block making machine description:
HZY8500 hydraulic brick machine equipment is given priority to hydraulic pressure, its electric control system adopts PLC programmable procedure, integrates machine, electricity, gas and liquid, by pushing board, feeding material, crush molding. The hydraulic extrusion products process, molding fast, power saving, products structure highly strength, no pollution, lower noise, energy saving function etc.
Equipped with a man-machine interface system, the automatic fault diagnosis, remote monitoring, automatically monitoring of production operating procedures.
HZY4000 hydraulic pressure block making machine features:
The product adopt foreign advanced technology and design and production under the conditions of our country, own compact structure, beauty apperance, durability, low maintenance, and advanced degree of automation. Imports of computers, electric appliances, hydraulic components, seals. With good common, equipment performance is stable and reliable.
- Place of Origin: quanzhou
- Brand Name: hengxing
- Model Number: HZY8500
Main technical parameters:
HZY-8500 Slag brick making machine technical parameters | |
Maximum pressure | 5000kn |
Maximum demoulding press | 950kn |
Rated pressure | 25Mpa |
Total power | 40Kw |
Molding cycle | 20-28s |
Max height of feeding material | 200mm |
Steel pallet size | 940mm x 860mm x 12mm |
Host machine dimension | 3350mm x 1800mm x 3650mm |
Host machine weight | 17t |
Block capacity of HZY-8500 hydraulic pressure machine |
160mm x 90mm x 100mm=32pcs/mould=4800pcs/h |
200mm x 100mm x 50mm=18pcs/mould=2750pcs/h |
240mm x 53mm x 115mm=27pcs/mould=4050pcs/h |
