- Size: 3350*2200*2850 mm
- Place of Origin: Fujian, China (Mainland)
- Brand Name: hengxing
- Model Number: QTY 6-21
- Weight: 11500.000 kg
- :
- :
- :
- :
- :
- :
- :
Our brick equipment can produce different size of hollow blocks, Solid bricks, Porous blocks and some road pavers, change the mould can produce the prouducts which you want.

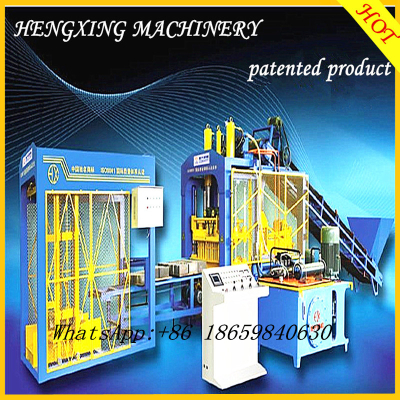

Hengxing block machine block making machine vibration block machine concrete block machine for sale
ADVANTAGE
| A | This is an equipment from china for small business. |
| B | It is hightly automaticlly, the day of production of wet blocks can be sold in the next day. |
| C | Fast recycle ,rapaid return of capital, block has steam curing. |
| D | It also needs less investment, save place ,and save enregy. |
| E | It is very easy to maintain the machine, easy to operation. |
Hengxing block machine block making machine vibration block machine concrete block machine for sale
1, controll system(Mitsubishi PLC): A. Mitsubishi PLC, Taiwan Touch Screen B. Omron Relay, Schneider Contactor C. Control Panel with pictures. |
2, hydraulic system(Taiwan): A. Proportional electro-hydraulic relief valves B. Solenoid directional valves C. Pressure control valves D. Water cooling system E. Hydraulic Tank with oil filter |
3, Table Vibration System, High frequency low amplitude A. Table vibration with HIGH FREQUENCY LOW AMPLITUDE B. Press head has threee Oli Cylinders C. Vibration platform has fixed support bar and adjustable support bar |
4, Mould A. Use the 16# manganese steel B. Line cutting machine to make sure 100% accurate size of mould C. Heat treatment can reach HRC 61 D. Based on the customer requirement to make the various moulds. like hollow block, solid block, interlock block, curbstone block etc. |
5, Feeder A. The fork is working about 40 degrees to push the material into the mould B. It can feed the various materials to the various moulds |
- Size: 3350*2200*2850 mm
- Place of Origin: Fujian, China (Mainland)
- Brand Name: hengxing
- Model Number: QTY 6-21
- Weight: 11500.000 kg
- :
- :
- :
- :
- :
- :
- :
Technical Paramerters
HQTY6-21 Basic Automatic Block Machine Production Line | |
Host Machine Size | 3350*2200*2850 |
Moulding Area | 820*700mm |
Moulding Cycle | 15-22s |
Pallet Size | 940*830*25mm |
Host Machine Weight | 11.5t |
Total Power | 32kw |
Vibration Force | 45-50kn |
Factory Area | 600square meters |
Install Capacoty | 50kw |
Mixer Model | JS500 |
Production Parameters
Item
| Specification(mm) (L*W*H) | Quantity per hour |
Concrete block | 390*190*190 | 970-1080 |
Solid block | 240*115*53 | 5800-6480 |
Porous block | 240*115*90 | 2400-2700 |
Paving brick | 250*250*60 | 720-850 |
Holand brick | 200*100*60 | 2400-2520 |
