- Size: 1700*800*1900mm
- Place of Origin: Quanzhou, Fujian, China(Mainland)
- Brand Name: hengxing
- Model Number: HZY-4000
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

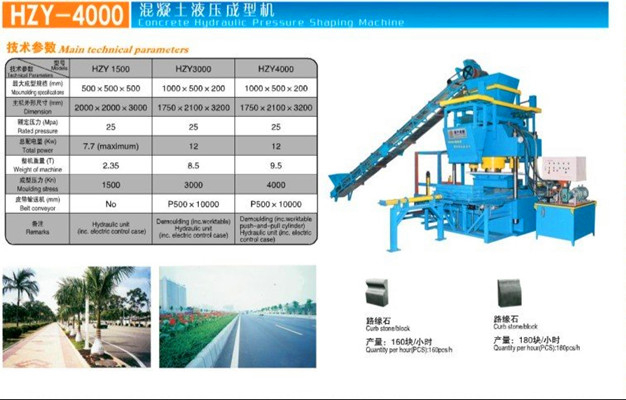

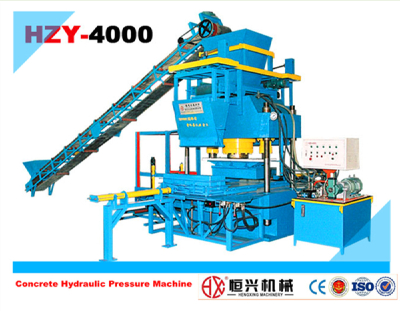

High Level HZY-4000 Concrete Brick Curb stone Making machine
Manual feeding, Automatic hydraulic press moulding,
Low price, Small investment, Big benefit.
Concrete brick machine using Hydraulic to make solid bricks and pavers(With colour face)
Also can making Curbstone(Size<=500mm)
Specifications:
1) Rated pressure of the oil pump: 31.5MPa
2) Max. working pressure: 150T
3) Max. working stroke of piston: 200mm
4) Height of closing mould: 400-600mm
5) The largest open distance between posts: 650mm
6) Pressing speed (loaded): 500mm/min
7) Lifting speed (no load): 2,250mm/min
8) Engine power: 7kW
9) Working voltage of electromagnetic valve: 220V
10) Oil capacity of fuel tank: 150kg
11) Weight (main frame): 1,500kg (1,800kg)
12) External dimensions (main frame): 850 x 850 x 2,000mm
- Size: 1700*800*1900mm
- Place of Origin: Quanzhou, Fujian, China(Mainland)
- Brand Name: hengxing
- Model Number: HZY-4000
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Specifications:
1) Rated pressure of the oil pump: 31.5MPa
2) Max. working pressure: 150T
3) Max. working stroke of piston: 200mm
4) Height of closing mould: 400-600mm
5) The largest open distance between posts: 650mm
6) Pressing speed (loaded): 500mm/min
7) Lifting speed (no load): 2,250mm/min
8) Engine power: 7kW
9) Working voltage of electromagnetic valve: 220V
10) Oil capacity of fuel tank: 150kg
11) Weight (main frame): 1,500kg (1,800kg)
12) External dimensions (main frame): 850 x 850 x 2,000mm
