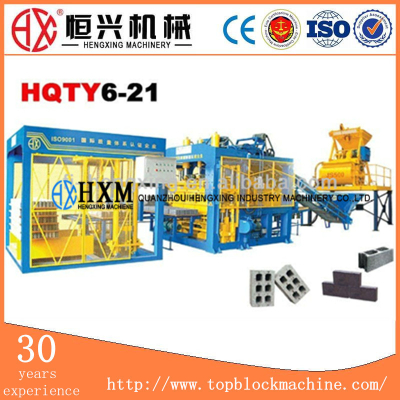

HQTY 6-15 High performance semi automatic manual interlocking cement/concrete brick block making machine

This kind of building block machine of Model HQT6-21  automatic block making machine with high quality adopts optimization design,rational structure,the forcing type,fast type  that vibration pressurizes,It is one set that collects efficiency,economy,suitable and according with the national conditions in an oganic whole building block shape machine.

 Our brick equipment can produce different standard size of brick :

1.Hollow blocks

2.Solid bricks

3.Porous blocks

4.Road pavers

moulding pcs:6pcs/mould(size:390x190x190mm);

configure power:32kw;

voltage:380V,50HZ

host machine dimension:2980x2250x2650mm;

cycle time:15-25s;

pallet size:940x830x25mm;

host machine weight:11.5T;

covered area for machine:160M2;

factory area:500 M2;

virbration force:45kn;

workers per class:4--6 workers;

machine output(capacity):

hollow block(390x190x190mm):6pcs/mould,8400pcs/8 hours;

solid block(240x115x53mm):36pcs/mould,50400pcs/8 hours;

porous block(240x115x90mm):15pcs/mould,21000pcs/8 hours;

holand block(200x100x60mm):21pcs/mould,29400pcs/8hours;
