- Place of Origin: Fujian, China (Mainland)
- Brand Name: hengxing
- Model Number: HZS series
- :
- :
- :
- :
Equipmets of the Road mixed concrete mixing station:
Batcher (four hoopers) |
Horizontal type belt conveyor |
Tilt belt conveyor |
Air system |
Conctronl system |
Mixing floor |
Weighting floor |
Mixer |
Materials weighting system |
Material conveyor system |
This machinery is widely used in for :
1.Architecture project transportation project,
2.Construction of municipal
3.Water conservancy
4.Airport consttuction
5.Port construction Metalurgy Mining
6.Construction building site of all sizes

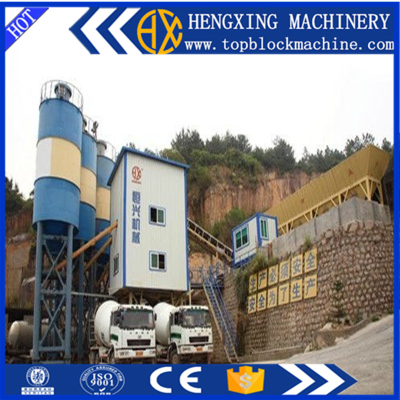

Ready mixed concrete batching plant
According to different collocate ,scope of appliaction and efficacy it can be divided into
1.Road-mixed(HZY25/35/50/75/100/150)
A.Bucket HZSD
B.Movable HZSY
C.Modular HZS
2.Ready-mixed(HZY60/90/120/180/200).
JS Series Double-Horizontal-Shaft Compulsory Type Concrete Mixer
a.vertical planetary type mixer
b.single-horizontal-shaft
c.double-horizontal-shaft compulsory mixer.
Customers can choose the scale and grade of the concrete batching plant as well as appropriate host machine accoding to their capital amount.
Our batching plant mainly deploy JS series double-horizontal- shaft forced type mixer and can meet the requirements of users by using self-developed new-typed mixer or famous brands at home and abroad.
Adopt various configurations:
1.Main structure :(Single,double) station ,(Single,double) building,vessel ,half- high tower type.
2. Main mixer:(new type) double-screw mixer,double -axle mixer.
A.Horizontal twin shaft mixer or Planetary mixer
B.Italian SICOMA MIXER or JS MIXER made by HXM Company
C.Germany BHS, TEKA of mixer etc.
3. Control system:(new type) double machine synchronous contronl type,classic control type
A.Mitsubishi PLC, self diagnosed for trouble shooting
B. Industry computer plus printer, daily report, monthly report, yearly report, monthly report, yearly report
C. International electrical components: Omron, Schneider
D. Monitor system
4.Aggregate conveye:(horizontal ,shape ,grooved shape ) belt to load material ,load material by skiphoist
5.Batching system
A. according to customer’s site, it has Under- ground batcher (concrete structure), on the ground batcher (steel structure)
B, it has Accumulative weighing system and individual weighing system
6.Clean system:Bag type ,vibration type ,pulse type cleaner.
7. Air system :Main component adopt famous brand product .
8. Powder conveye:Screw conveye ,air conveye .wind groove conveye Material weighting ;single weighting,cumulative weighting .
9. Belt system
A, trough belt conveyor for the limited land
B, long belt conveyor for the bigger land
- Place of Origin: Fujian, China (Mainland)
- Brand Name: hengxing
- Model Number: HZS series
- :
- :
- :
- :
Technical Parameter
Model | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 | ||
Productivity (m3/h) | 60 | 90 | 120 | 180 | 240 | ||
Host machine of mixer |
Model | JS100/ MSO1500 | JS1500/ MSO2250 | JS2000/ MAO3000 | JS3000/ MAO4500 | JS4000/ MAO6000 | |
Mixer power(kw) | 2×22 | 2×30 | 2×37 | 2×55 | 2×75 | ||
Output capacity(m3) | 1 | 1.5 | 2 | 3 | 4 | ||
Aggregate Size (mm) | ≤60 | ≤80 | ≤120 | ≤150 | ≤150 | ||
Batching bunker
| Hoppers capacity (m3) | 13 | 15 | 20 | 30 | 30 | |
Hoppers NO. | 4 | 4 | 4 | 4 | 4 | ||
Capacity of Belt conveyor(t/h) | 200 | 300 | 400 | 600 | 800 | ||
Weighting scope and precision | Aggregate(kg) | 4×1500 ±2% | 4×2500±2% | 4×3000±2% | 4×3600±2% | 4×4800±2% | |
(kg) Cement | 600±1% | 900±1% | 1200±1% | 1800±1% | 2400±1% | ||
Coal ash(kg) | 200±1% | 300±1% | 400±1% | 600±1% | 800±1% | ||
Water(kg) | 300±1% | 500±1% | 600±1% | 800±1% | 1000±1% | ||
Additives(kg)
| 10±1% | 30±1% | 50±1% | 50±1% | 100±1% | ||
Total power (kw) | 98 | 123 | 145 | 198 | 240 | ||
Unloading Height(m)
| ≥3.8 | ||||||
