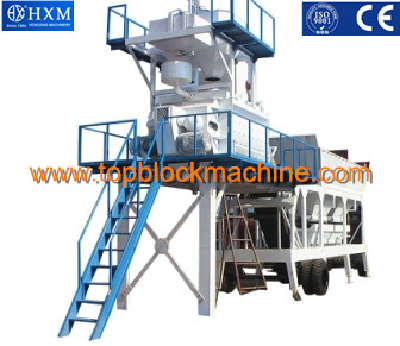

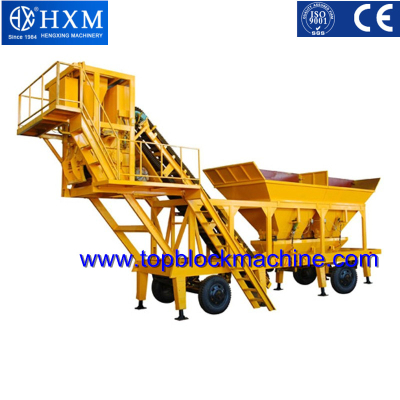

Mobile small concrete batching plant concrete mixing plant YHZS35
Product Description
1.Mixing system
A.Horizontal twin shaft mixer or PLANETARY mixer
B.Italian SICOMA MIXER or JS MIXER made by HXM company
C.Germany BHS,TEKA of mixer etc.
It is up to the budget of customer
2.Control system
A. Misubishi PLC. Self diagnosed for trouble shooting
B. Industry computer control plus printer, daily report, monthly report, yearly report
c.International electrical components:Omron, Schneider
D.Monitor system
3.Batching system
A.According to customer’s site. It has Under-ground batcher (concrete structure) and the ground batcher (steel structure)
B. It has Accumulative weighing system and individual weighing system
4.Belt system
A.Trough belt conveyor for the limited land
B.Long belt conveyor for the bigger land
5.Type of concrete mixing plant
A. Mobile batching plant can move to one place to one place
B.Modular batching plant can be easily tranfered to another place
C. Ready mixed batching plant only for the commercial concrete using
- Place of Origin: Quanzhou
- Brand Name: hengxing
- Model Number: YHZS35
YHZS series mobile concrete mixing plant -Main technical parameters | |||||||||
Model | productivity | Host mixer | Weighing pricision | Total power (kw) | Total weight (kg) | Speed (km/h) | Tread diameter(mm) | Turning radius (m) | |
m³/h | Aggregate | others | |||||||
YHZS25 | 25 | JS500 | ≤2% | ≤1% | 45 | 20000 | 15 | 3200 | 9 |
YHZS35 | 35 | JS750 | ≤2% | ≤1% | 60 | 22000 | 15 | 3200 | 9 |
YHZS50 | 50 | JS1000 | ≤2% | ≤1% | 70 | 25000 | 15 | 3400 | 10 |
YHZS75 | 75 | JS1500 | ≤2% | ≤1% | 100 | 32000 | 15 | 3400 | 12 |
