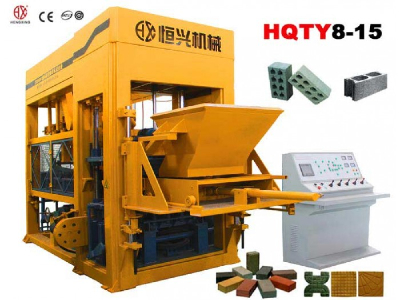

Paver block machine interlock brick machine concrete block machine line

Paver block machine interlock brick machine concrete block machine line

  • Min.Order Quantity: 1 Set
  • Supply Ability: 15 Sets per Month
  • Port: Xiamen
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2000-08-05
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Quanzhou
  • Brand Name:  hengxing
  • Model Number:  HQTY8-15

Water permeable  interlock block making machine brick making machine hollow /solid brick machine



HQTY8-15 block machine brick machine middle model block machine


 Main technical information:



Production

8pcs/mould, 12,000pcs/8 hours(Hollow block:400x200x200mm)

42pcs/mould, 63,000pcs/8 hours(solid block:240x115x53mm)

21pcs/mould, 31,000pcs/8 hours(interlock:240x130x60mm)

28pcs/mould, 42,000pcs/8 hours(paver block:200x100x60mm)

working cycle time

15-20s

Main machine dimension

3450x2250x2950mm

Main machine weight

12.5T

Main machine power

33.9kw

Vibration force

60kn

Pallet size

1000x860x25mm

factory area

600 square meters

Our  advantages:



1, Table Vibration plus head press vibration system:

A: table vibration plus head press vibration

   B: working stable and safely

   C: head press has three oil cylinders

   D: improve the block of density and intensity

2, control system:

   A. Mitsubishi PLC, self diagnosed for Trouble shooting

   B. touch screen controller (Eview,Shenzhen), easy operation

C. International electrical components: Omron, Schneider

3, Proportional electro-hydraulic relief valves (Taiwan,Calyca)

   A. Its working steady with low noise

B. Hi-precision

C. easy micro-adjusting

4, 360 degrees of seconds’ pendulum feeding system:

A, feeding motor is working with two or four transmission shafts

B, it can feed various materials to the various moulds

   C, improve the block of density and intensity

   D, improve the feeding speed within 2 seconds

   E, it is very easy to clean the feeder.

5, American and British combination of sealing system

A, it is connected 100% closely, no leaking at all,

B, to make sure the hydraulic system working stable and smooth

6, heat treatment for the mould

A, use the 16# manganese steel,

B, heat treatment can reach HRC 61

  C, Working 150,000times

7, Pallets feeder of pusher brake system

A, big size pusher brake for the different type of pallets

B, feeding the pallets smooth, no stop

8, water cooling system

    A, keep the hydraulic oil of working temperature

   B, protect the hydraulic system and mechanical system






  • Place of Origin:  Quanzhou
  • Brand Name:  hengxing
  • Model Number:  HQTY8-15




Main technical information:



Production

8pcs/mould, 12,000pcs/8 hours(Hollow block:400x200x200mm)

42pcs/mould, 63,000pcs/8 hours(solid block:240x115x53mm)

21pcs/mould, 31,000pcs/8 hours(interlock:240x130x60mm)

28pcs/mould, 42,000pcs/8 hours(paver block:200x100x60mm)

working cycle time

15-20s

Main machine dimension

3450x2250x2950mm

Main machine weight

12.5T

Main machine power

33.9kw

Vibration force

60kn

Pallet size

1000x860x25mm

factory area

600 square meters
