- Place of Origin: quanzhou
- Brand Name: hengxing

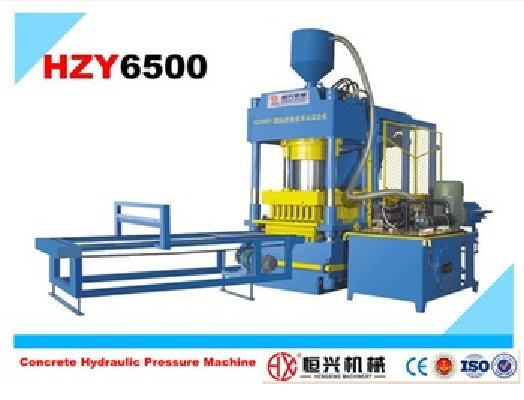

- Model Number: HZY6500
1.Table vibration system plus head press vibration system
A: table vibration plus head press vibration
B: working stable and safely
C: head press has three oil cylinders
D: improve the block of density and intensity
2.Control system
A: Mitsubishi PLC, self diagnosed for trouble shooting
B: touch screen controller (Eview,Shenzhen), easy operation
C: International electrical components: Omron, Schneider
3.Proportional electro-hydraulic relief valves (Taiwan, Calyca)
A: Its working steady with low noise
B: Hi-precision
C: Easy micro-Adjusting
4.360degrees of seconds’ pendulum feeding system
A: feeding motor is working with two or four transmission shafts
B: it can feed various materials to the various moulds.
C: improve the block of density and intensity
D: improve the feeding speed within 2 seconds
E: it is very easy to clean the feeder.
5.American and British combination of sealing system
A: it is connected 100 percent closely, no leaking at all.
B: to make sure the hydraulic system working stable and smooth.
6.Heat treatment and wire cutting for the mould
A: Use the 16 manganese steel
B: heat treatment can reach HRC 61.
C: Working 150,000 times
7.Pallets feeder of pusher brake system
A: big size pusher brake for the different type of pallets
B: feeding the pallets smooth, no stop
8.Water cooling system
A: keep the hydraulic oil in working temperature.
B: protect the hydraulic system and mechanical system
- Place of Origin: quanzhou
- Brand Name: hengxing
- Model Number: HZY6500
Detailed Product Description
Molding force: 3, 000kN
a) Main cylinder: 2, 340kN
b) Supplement cylinder: 760kN
2) Max. working pressure: 23MPa
3) Diameter of main cylinder's piston: 360mm
4) Diameter of supplement cylinder's pillar: 145mm
5) Max. working stroke of piston: 290mm
6) Max. working stroke of pillar: 300mm
7) The largest open distance between posts: 1, 400mm
8) The distance between top and bottom plank (adjustable): 590-1, 010mm
9) Engine power:
a) Y132S5-4: 5.5kW
b) Y100L1-4: 2.2kW
10) Working oil measure: 250kg
11) External dimensions (main frame): 1, 700 x 800 x 1, 990mm
12) Weight (main frame): 5, 000kg
13)Capacity:150-170Pcs/h
