- Place of Origin: Quanzhou, Fujian, China(Mainland)
- Brand Name: hengxing
- Model Number: QLB20
- :
- :
- :
- :
- :
- :
- :
- :

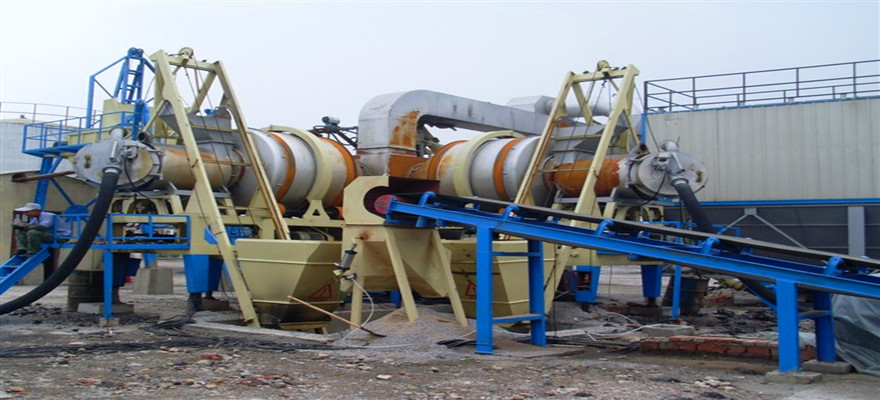

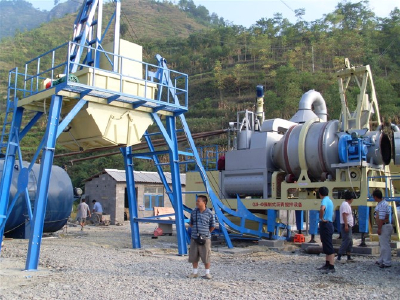

QLB series asphalt plant adopting modular design, easy for transportation, disassembly and installation.
QLB series asphalt plant easily expanded into mobile type, convenient for using in different working conditions.
The drum adopts gear drive, frequency conversion, positive and negative going motion, intermittent heating.
It’s double shaft mixing, batch production. Blade and lining board adopts high wear-resisting material, with long service life.
The standard configuration of QLB Mobile asphalt plant is cyclone filter. Optional: water dust filter or bag house collector.
The aggregate, bitumen and filler all adopt the batch-type metering, with high precision and reliable performance.
Control with PLC operation, with manual/automatic operation modes.
- Place of Origin: Quanzhou, Fujian, China(Mainland)
- Brand Name: hengxing
- Model Number: QLB20
- :
- :
- :
- :
- :
- :
- :
- :
Positive Asphalt Concrete Mixing Equipments Main Technical Parameters
model | QLB-10 | QLB-15 | QLB-20 | QLB-30 | QLB-40 | QLB-60 | QLB-80 |
productivity | 10t/h | 15t/h | 20t/h | 30t/h | 40t/h | 60t/h | 80t/h |
power | 56KW | 73KW | 98KW | 132KW | 185KW | 232KW | 268KW |
Batching machine | 5m³*3 | 5m³*3 | 8m³*3 | 8m³*3 | 8m³*3 | ||
Finished product hopper | 2t | 5t | 5t | 9t | 9t | 9t | 13t |
Output temperature | 120-180°C, adjustable | ||||||
Fuel consumption | Kerosene: 5-7.5kg/t,coal: 13-15kg/t | ||||||
options | Coal mill,water dust catcher,sack dust catcher,control room,asphalt heating tan |
