- Place of Origin: Quanzhou
- Brand Name: hengxing
- Model Number: HZS150

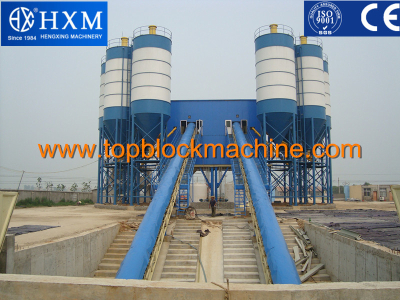

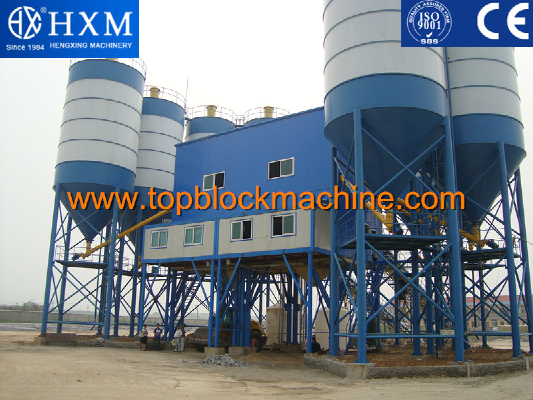

Ready mixing concrete batching plant mixing plant concrete batching plant
Concrete batching plant concrete mixing plant adopt various configurations:
1.Main structure :(Single,double) station ,(Single,double) building,vessel ,half- high tower type.
2. Main mixer:(new type) double-screw mixer,double -axle mixer.
A.Horizontal twin shaft mixer or Planetary mixer
B.Italian SICOMA MIXER or JS MIXER made by HXM Company
C.Germany BHS, TEKA of mixer etc.
3. Control system:(new type) double machine synchronous contronl type,classic control type
A.Mitsubishi PLC, self diagnosed for trouble shooting
B. Industry computer plus printer, daily report, monthly report, yearly report, monthly report, yearly report
C. International electrical components: Omron, Schneider
D. Monitor system
4.Aggregate conveye:(horizontal ,shape ,grooved shape ) belt to load material ,load material by skiphoist
5.Batching system
A. according to customer’s site, it has Under- ground batcher (concrete structure), on the ground batcher (steel structure)
B, it has Accumulative weighing system and individual weighing system
6.Clean system:Bag type ,vibration type ,pulse type cleaner.
7. Air system :Main component adopt famous brand product .
8. Powder conveye:Screw conveye ,air conveye .wind groove conveye Material weighting ;single weighting,cumulative weighting .
9. Belt system
A, trough belt conveyor for the limited land
B, long belt conveyor for the bigger land
Remarks:
1. The total power do not include the power conveyor.
2. The hopper and the capacity can be designed as customer’s requirement.
3. The parameters may have changed, please subject to the products.
Product Description:
1. Simple structure, large maintaining space, maintenance is convenient.
2. The promotion system multiple protection is stable reliable with high efficiency.
3. Space occupied is small. Installation and relocation are easy.
4. Using automatic industrial control system. The management function is powerful and reliable.
5. Major electrical components are used internationally well known brands.
6. Particular suitable for small and middle sized of concrete construction needs.
Equipment included:
1. Batcher(3 bins)
2. Protective Fencing
3. Hopper Hoist System
4. Main building and Guidance
5. Mixer
6. Weighing System
7. Screw Conveyor
8. Silo
- Place of Origin: Quanzhou
- Brand Name: hengxing
- Model Number: HZS150
Technical Parameters:
Ready-mixed concrete mixing plant -technical parameters | ||||||
Model | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 | |
Productivity(m³/h) | 50 | 75 | 100 | 150 | 200 | |
Mixer | Model | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
Mixing power(KW) | 2*22 | 2*30 | 2*37 | 2*55 | 2*75 | |
Output capacity(m³) | 1 | 1.5 | 2 | 3 | 4 | |
Aggregate size(mm) | ≤60 | ≤80 | ≤120 | ≤150 | ≤150 | |
Aggregate batcher | Hoppers capacity(m³) | 3*13 | 3*13 | 3*15 | 4*20 | 4*25 |
Hopper counts | 3 | 3 | 3 | 4 | 4 | |
Capacity of belt conveyor(t/h) | 200 | 300 | 400 | 500 | 600 | |
Weighing scope and precision | Aggregate(kg) | 2500±2% | 3500±2% | 4500±2% | 6500±2% | 9000±2% |
Cement(kg) | 600±1% | 900±1% | 1200±1% | 1800±1% | 2400±1% | |
Coal ash(kg) | 200±1% | 300±1% | 400±1% | 600±1% | 800±1% | |
Water(kg) | 300±1% | 400±1% | 600±1% | 800±1% | 1000±1% | |
Additive(kg) | 10±1% | 30±1% | 30±1% | 50±1% | 50±1% | |
Total power(kw) | 98 | 123 | 145 | 198 | 240 | |
Discharging height(m) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8
| |
