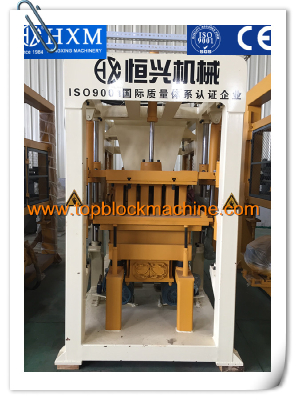

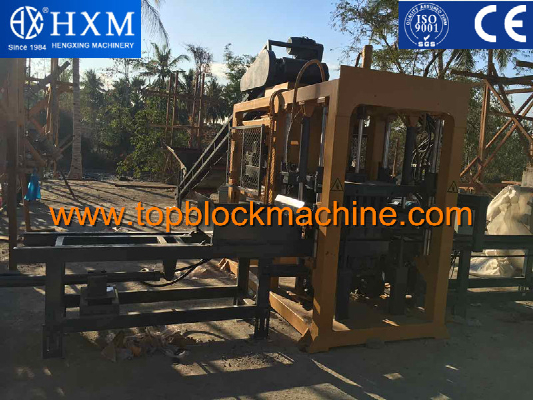

Small block machine  brick machine concrete block machine HQTY3-25

Our  advantages:

1, Table Vibration plus head press vibration system:

A: table vibration plus head press vibration

   B: working stable and safely

   C: head press has three oil cylinders

   D: improve the block of density and intensity

2, control system:

   A. Mitsubishi PLC, self diagnosed for Trouble shooting

   B. touch screen controller (Eview,Shenzhen), easy operation

C. International electrical components: Omron, Schneider

3, Proportional electro-hydraulic relief valves (Taiwan,Calyca)

   A. Its working steady with low noise

B. Hi-precision

C. easy micro-adjusting

4, 360 degrees of seconds’ pendulum feeding system:

A, feeding motor is working with two or four transmission shafts

B, it can feed various materials to the various moulds

   C, improve the block of density and intensity

   D, improve the feeding speed within 2 seconds

   E, it is very easy to clean the feeder.

5, American and British combination of sealing system

A, it is connected 100% closely, no leaking at all,

B, to make sure the hydraulic system working stable and smooth

6, heat treatment for the mould

A, use the 16# manganese steel,

B, heat treatment can reach HRC 61

  C, Working 150,000times

7, Pallets feeder of pusher brake system

A, big size pusher brake for the different type of pallets

B, feeding the pallets smooth, no stop

8, water cooling system

    A, keep the hydraulic oil of working temperature

   B, protect the hydraulic system and mechanical system
