- Place of Origin: china
- Brand Name: hengxing
- Model Number: HQTY8-15

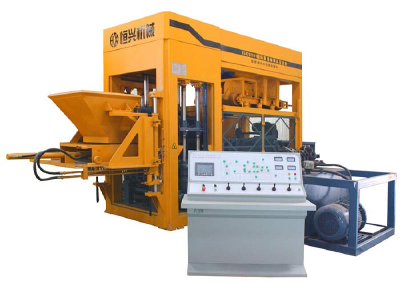

This automatic brick making machine can produce different size of hollow blocks,Solid bricks,Porous blocks and some road pavers.
with Advance vibrating technology,Automatic Feeding and forming System Using crutched arms which avoid the green block damage when mould frame lifting .
Advanced vibrating technology,Feeding and forming by different vibrating mode assure high quality of feeding and forming.
This machine is suitable for customers with medium amount of investment.
Water permeable brick concrete block machine Technical parameter
Workers needed: 6- 8
Dimension of the host machine | 3500*2350*3100mm | Specifications of the electrical machinery | 33.9KW |
Moulding area | 0.6M² | Vibration force | 60KN |
Moulding period | 15-20s | Factory area | 600（m*m） |
The size of the splint | 860*940*20/25mm | Capacity | 50KVA |
Host Machine Weight | 12.5T | Mixer model | JS750 or JS500 |
- Place of Origin: china
- Brand Name: hengxing
- Model Number: HQTY8-15
Production Capacity
Item | Specification（mm）（L*W*H） | Quantity per hour |
Concrete block | 390*190*190 | 1280-1440 |
Solid block | 240*115*53 | 6283-7020 |
Porous block | 240*115*90 | 2880-3240 |
