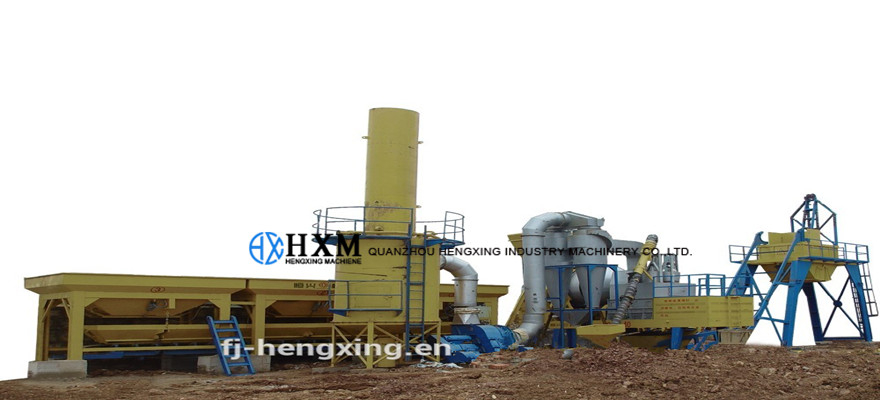

Description of double rollers mobile asphalt plant with high produce bitumen
YHLB series mobile dual drum asphalt concrete mixing equipment is a kind of asphalt mixer model,which is different from the cylinder mixmachine, its unique central reverse feeding device,
central air and double drum structure, so the machine has drum mixer modern emerging has
simple structure, high efficiency, highlighting strengths field is portable and flexible, and has the advantages of easy measurement oftraditional mixer, mixing ratio, quality reliable, is ideal for small mechanical black pavement maintenance, repair.
Features of double rollers mobile asphalt plant with high produce bitumen
Give first place structure to drum-type for batch charging, drying and highly efficiency mixing. The machine structure is compact and transitions is flexible so it ensure to fix and move the machine easily annd directly.
YHLB series mobile double rollers asphalt plant with high produce bitumen widely adaptability. It’s easy to set the drying time so the drying cylinder can reach up the temprature to dry even the wet mineral aggregate standard and ensure the quality of asphalt concrete requirements.
Oil-aggregate ratio is very accurate and easy to be adjusted by using asphalt spray.
Excellent quality of the products. Temprature stability, mixing uniformity. Especially the middle inviting air division, completely avoid the deadly characteristic of aging of asphalt drum-type mixers.
The burner adopted the traditional fuel technology and the latest pulverized coal jet combustion, less slagging, ignition fast and high thermal efficiency.
Special designof dust catching system can effectively reduce the exhaust temprature, improve efficiency of dust collection.
1.Double drum roller design of drying and mixing type with simple structure and easy operation.
2.Automatic PLC control system with manual and half-manual.
3.Movable chassis structure allows a fast as well as easy transport and installation.
4.Coal and oil burner are available as customers’ request.
- Place of Origin: Fujian, China (Mainland)
- Brand Name: hengxing
- Model Number: YHLB
- :
- :
- :
- :
Model | Productivity | Total Power | Output Temperature | Fuel Consumption |
YHLB10 | 10t/h | 41kw | 120-180°C, Adjustable | Oil: 5-7.5kg/t /Coal: 13-15kg/t |
YHLB15 | 15t/h | 56kw | ||
YHLB20 | 20t/h | 73kw | ||
YHLB30 | 30t/h | 92kw | ||
Remarks: The parameters may have change, please subject to the products. | ||||
Options: Batching Plant, Finished Product Bin, Coal Mill, Water Dust Collector, Asphalt Heating Tank |
