- Place of Origin: quanzhou
- Brand Name: hengxing

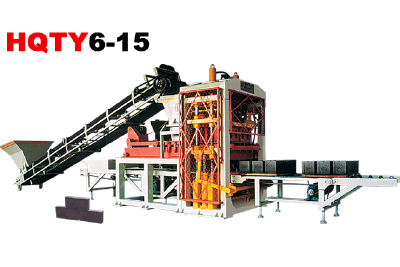

- Model Number: HQTY-6-15
Main features:
1. Adopt table and mould vibration,make the block density and strong est, it is better tan only single vibration.
2. Material vehicle mechanism utlize screw net,which make laying material equably,shorten the time of round trip for material vehicle,accordingly shorten the moulding cycle.
3. This block making machine products is full-fledged,technique is advanced.to produce all kinds of blocks.
4. This host machine frame is wide to lay material handlu,noulding blocks is more,adpot three oil culinders to add pressure to make pressure equably,and the pressure can arrive 100T.
5. Using advanced screw net to lay material,which can make the material kinds extensive.
- Place of Origin: quanzhou
- Brand Name: hengxing
- Model Number: HQTY-6-15
1.Table vibration system plus head press vibration system A: table vibration plus head press vibration B: working stable and safely C: head press has three oil cylinders D: improve the block of density and intensity 2.Control system A: Mitsubishi PLC, self diagnosed for trouble shooting B: touch screen controller (Eview,Shenzhen), easy operation C: International electrical components: Omron, Schneider 3.Proportional electro-hydraulic relief valves (Taiwan, Calyca) A: Its working steady with low noise B: Hi-precision C: Easy micro-Adjusting 4.360degrees of seconds’ pendulum feeding system A: feeding motor is working with two or four transmission shafts B: it can feed various materials to the various moulds. C: improve the block of density and intensity D: improve the feeding speed within 2 seconds E: it is very easy to clean the feeder. 5.American and British combination of sealing system A: it is connected 100 percent closely, no leaking at all. B: to make sure the hydraulic system working stable and smooth. 6.Heat treatment and wire cutting for the mould A: Use the 16 manganese steel B: heat treatment can reach HRC 61. C: Working 150,000 times 7.Pallets feeder of pusher brake system A: big size pusher brake for the different type of pallets B: feeding the pallets smooth, no stop 8.Water cooling system A: keep the hydraulic oil in working temperature. B: protect the hydraulic system and mechanical system |
