- Size: 32
- Place of Origin: QUANZHOU
- Brand Name: hengxing
- Model Number: HQTY-6-15
- Weight: 52.000 kg

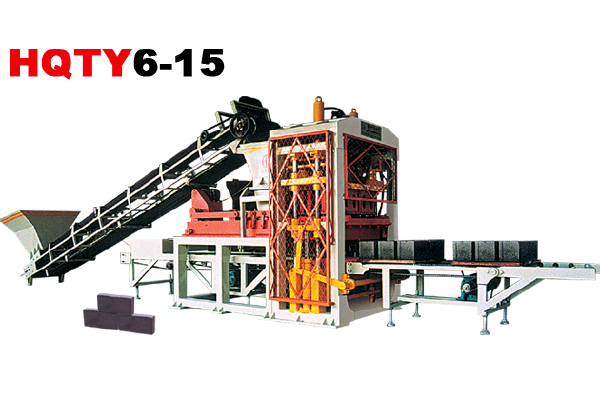

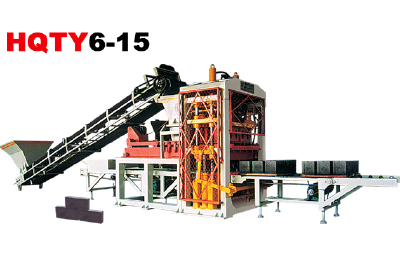

fully automatic block making machine hollow block machine brick making machine
Vibration System:
a. the vibration system has 2 parts, table vibration and head press vibration. table vibration, driven by the hydraulic motor, makes the compress force in an instant to 90kn, makes the vibration system get the horizontal force; head press vibration, driven by the 2 imported high performance motor, so as to it makes the vibration system get the vertical compress force. So horizontal force and vertical compress force makes the vibraion spreading evenly around the products, shorten the moulding cycle, improve the strength.
b. consists of 1 high speed cylinder and 2 sychronous cylinders, high speed cylinder makes the head press descended and lifting quickly; synchronous cylinder keeps the head press descended and lifting balance.
Automatic cement brick Block Making Machine of hydraulic system (Taiwan):
A. Proportional electro-hydraulic relief valves
B. Solenoid directional valves
C. Pressure control valves
D. Water cooling system
E. Hydraulic Tank with oil filter
Automatic production line cement brick Block Making Machine price of Mould:
A. use the 16# manganese steel
B. Line cutting machine to make sure 100% accurate size of mould
C. heat treatment can reach HRC 61
D. Based on the customer requirement to make the various moulds,
Like hollow block, solid block, interlock block, curbstone block etc.
- Size: 32
- Place of Origin: QUANZHOU
- Brand Name: hengxing
- Model Number: HQTY-6-15
- Weight: 52.000 kg
fully automatic block making machine hollow block machine brick making machine
ADVANTAGE
1.Table vibration system plus head press vibration system A: table vibration plus head press vibration B: working stable and safely C: head press has three oil cylinders D: improve the block of density and intensity 2.Control system A: Mitsubishi PLC, self diagnosed for trouble shooting B: touch screen controller (Eview,Shenzhen), easy operation C: International electrical components: Omron, Schneider 3.Proportional electro-hydraulic relief valves (Taiwan, Calyca) A: Its working steady with low noise B: Hi-precision C: Easy micro-Adjusting 4.360degrees of seconds’ pendulum feeding system A: feeding motor is working with two or four transmission shafts B: it can feed various materials to the various moulds. C: improve the block of density and intensity D: improve the feeding speed within 2 seconds E: it is very easy to clean the feeder. 5.American and British combination of sealing system A: it is connected 100 percent closely, no leaking at all. B: to make sure the hydraulic system working stable and smooth. 6.Heat treatment and wire cutting for the mould A: Use the 16 manganese steel B: heat treatment can reach HRC 61. C: Working 150,000 times 7.Pallets feeder of pusher brake system A: big size pusher brake for the different type of pallets B: feeding the pallets smooth, no stop 8.Water cooling system A: keep the hydraulic oil in working temperature. B: protect the hydraulic system and mechanical system |
