Product Details
- Place of Origin: QUANZHOU
- Brand Name: hengxing
- Model Number: YWBS300
- Weight: 1500.000 kg

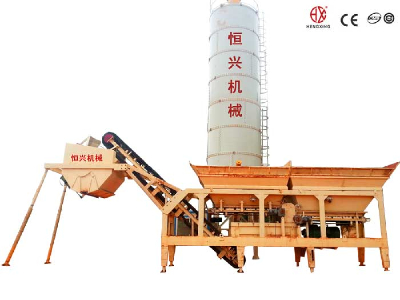

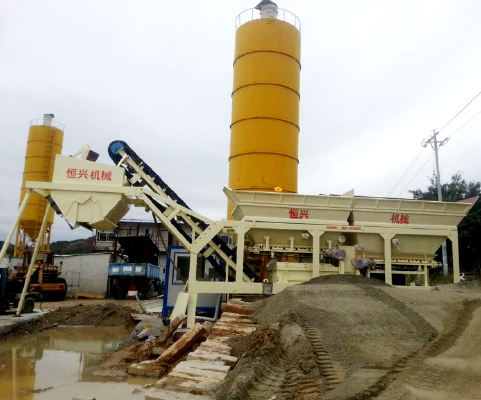

YWBS series Mobile stabilized soil mixing plant is suitable for the project of multiple point and long line, which is with simple operation & compact structure.
YWBS is a trailer unit, but gathers all functions of modular stabilized soil mixing plant.
YWBS can run once pulls and use once stops, especially for outdoor construction.
- Place of Origin: QUANZHOU
- Brand Name: hengxing
- Model Number: YWBS300
- Weight: 1500.000 kg
Technical parameters | |||||
| Model | WBS300 | WBS400 | WBS500 | WBS600 | |
Rated capacity（t/h） | 300 | 400 | 500 | 600 | |
Aggregate diameter（mm） | ≤60 | ≤60 | ≤60 | ≤60 | |
Hopper volume（m³） | 3*10 | 4*10 | 4*10 | 4*10 | |
Grading accuracy | Agg. | ±2％ | ±2％ | ±2％ | ±2％ |
| Cement | ±1％ | ±1％ | ±1％ | ±1％ | |
| Water | ±1％ | ±1％ | ±1％ | ±1％ | |
Total power（kw） | 90 | 106 | 121 | 140 | |
Note: 1. The total power does not include the power of screw conveyor. 2. Hopper quantity and volume are designed subject to requirements. | |||||
